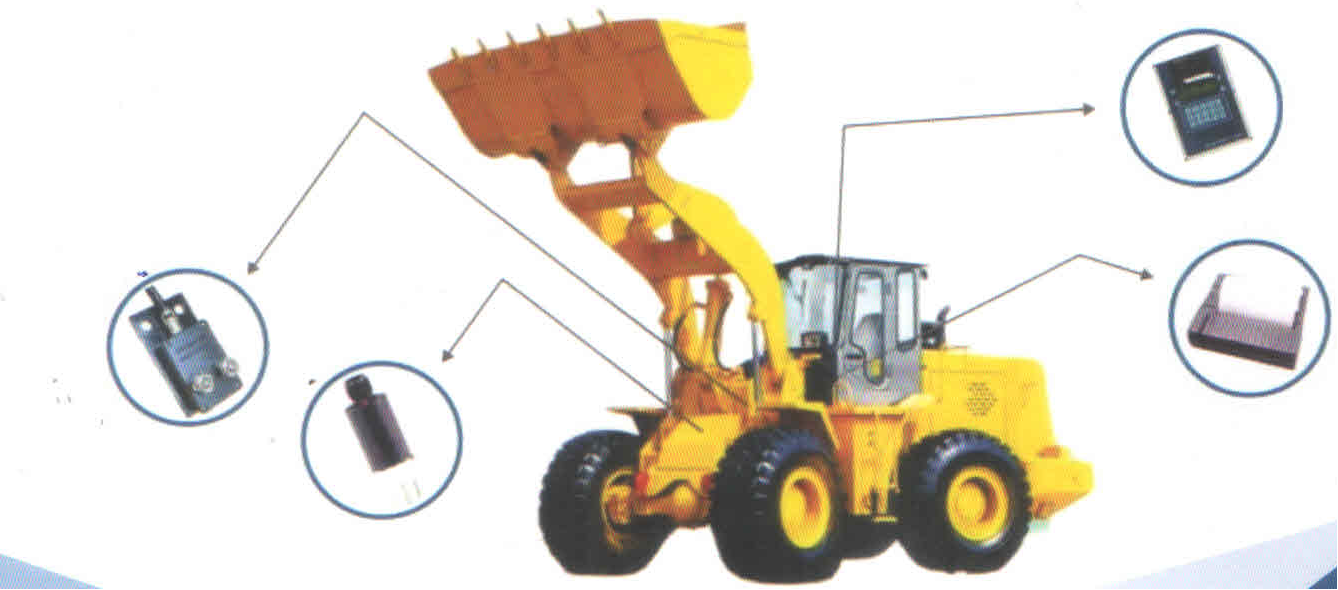

ON BOARD WEIGHER



TECHNICAL SPECIFICATION OF ON-BOARD WEIGHING SYSTEM
1. Power Supply : 10 to 30 VDC
2. Working Temperature : - 20 to 50 deg C
3. Protection Class : IP68
4. Resolution : 10, 20, 50,100 & 500 kgs Programmable as per Capacity
5. SerialPort Line : RS232C for use of handheld data logger
6. Sensors Working Temperature : -20 to 80 deg C
7. Display : Backlit LCD graphic display and keypad
8. Accuracy : from 0 to +/- 1% of machine nominal capacity.
FEATURES
Automatic, speed-compensated, dynamic weighing.
Static weighing mode.
Live last bucket tip off facility- inbuilt.
Multiple attachment calibration. Internaldatabase for 200 products and 500 customers.
PCMCIA uploading and downloading.
Printing.
PC data downloading.
Overload logging.
Net weighing (container/pallet weighing).
Slope compensation option.
Compatible with Load 2000 management system for the PC.
Telemetry capability.
Batch weighing capability - for uploading pre-programmed blends of materials to produce accurate mixing of batches.
Proven sensor technology.
Backlit LCD graphic display and keypad.
Large display for normal loading operation showing bucket load, target load, customer name, material handled and time.
Rugged construction with an integral aluminum chassis enclosed by a heavy-duty ABS case with easy-clean finish.
Universal mounting bracket allowing adjustment to virtually any angle.
Accurate up to 1% or better of loader capability.
